KTM 390 ADVENTURE
The KTM 390 ADVENTURE takes exploration further by merging all-road versatility and proven reliability with real-world performance. Built around a compact 373 cc single-cylinder powerplant with a capable, lightweight chassis and class-leading electronics, the KTM 390 ADVENTURE encourages you to find new frontiers with the unmatched capability and excitement you’d expected from a KTM ADVENTURE machine. Featuring an updated design for 2022, the KTM 390 ADVENTURE is now also visually aligned with the Dakar winning KTM FACTORY RALLY machines.
01. ENGINE & EXHAUST
02. CHASSIS
03. ERGONOMICS & COMFORT
04. BODYWORK & GRAPHICS
05. SOFTWARE & ELECTRONICS
TECHNICAL DETAILS
ENGINE
TORQUE | 37 Nm |
TRANSMISSION | 6-speed |
COOLING | Liquid cooled |
POWER IN KW | 32 kW |
STARTER | Electric starter |
STROKE | 60 mm |
BORE | 89 mm |

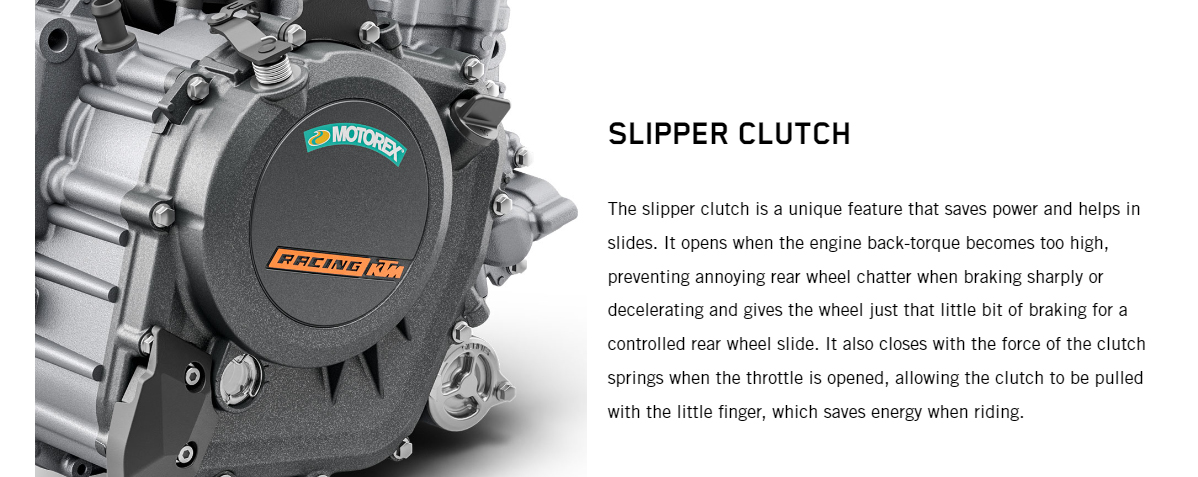

CLUTCH | PASC™ antihopping clutch, mechanically operated |
CO2 EMISSIONS | 78 g/km |
DISPLACEMENT | 373 cm³ |
EMS | Bosch EMS with RBW |
DESIGN | 1-cylinder, 4-stroke engine |
FUEL CONSUMPTION | 3.37 l/100 km |
CHASSIS
TANK CAPACITY (APPROX.) | 14.5 l |
ABS | Bosch 9.1MP Two Channel-ABS (incl. Cornering-ABS and offroad mode) |
REAR BRAKE DISC DIAMETER | 230 mm |
FRONT BRAKE | Four-piston radial fixed calliper |
REAR BRAKE | Single-piston floating calliper |
CHAIN | 520 X-Ring |
DRY WEIGHT | 158 kg |
FRAME DESIGN | Steel trellis frame, powder coated |
FRONT SUSPENSION | WP APEX 43 |
GROUND CLEARANCE | 200 mm |
REAR SUSPENSION | WP APEX – Monoshock |
SEAT HEIGHT | 855 mm |
STEERING HEAD ANGLE | 63.5 ° |
SUSPENSION TRAVEL (FRONT) | 170 mm |
SUSPENSION TRAVEL (REAR) | 177 mm |
